Double Suction Horizontal Split Case Water Pump 150S78 (110-200m3/h @ 37-85m)
S Series pumps are double suction horizontal split case centrifugal pump, they are single-stage, double suction, horizontally mounted, applied for general water supply, booster service, municipal waterworks, condenser cooling, water circulation, industrial service, building service, chemical plant, power plants etc.
The optimized design of the split case pump ensures high efficiency and durability. The split case pump has low maintenance requirements and can be produced in a number of materials according to the specific application requirements. It is available in both horizontal and vertical configurations, which enables a great deal of installation flexibility. Split case pumps are available for a wide range of flow rates and pressure heads.
Design modification can range from minor changes like reshaping the impeller, to a dedicated pump design for a specific application. The vast experience and engineering know-how as well as advanced design software available at Sanchang Pump, ensure that new custom designs are developed in an expedient way. Hydraulic performance can be accurately predicted and designs are subjected to structural analysis. Design verification occurs in our test facility. For very large pumps either a scale model test is performed or extensive on-site measurements can be conducted using our calibrated instrumentation. In addition, external testing and certification authorities can be selected to execute the testing.
High efficiency
The shapes of impeller and pump casings are optimized to achieve the highest possible efficiency for the specific design flow rate and pressure head. Off design characteristics are optimized to give each pump a wide operating range, ensuring that cavitation limits are not exceeded.
Easy maintenance
The pumps are easy to maintain as the upper half can be removed without dismantling pipe connections and driver components so that the alignment is not disturbed. In addition, our service department offers financially attractive service and maintenance contracts, which guarantee that downtime in pumping installations is kept to a minimum.
Durability
By using double suction impellers and double volute casings Sanchang supplies pumps with low vibration and noise levels. A double volute reduces radial thrust, resulting in longer service life for bearings and seals.

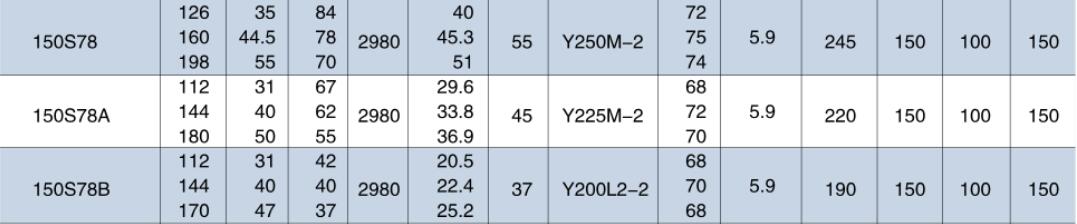

Parameters of 150S78
| Flow Capacity | 110-200 m3/h | Delivery Head | 37-85 m |
| Inlet/Outlet Dia. | 150/100 mm | Working Pressure | ≤ 1.25 MPa |
| Liquid Temperature | 0 - 80 ℃ | Driven By | Electric Motor / Diesel Engine |
| Seal Type | Mechanical seal / Gland packing | Liquid | Clean water or similar |
| Material of Construction | Cast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.s2205 |
Applications
General residential & industrial water supply & transferring;
Agricultural irrigation & drainage, Flood discharge & Emergency drainage;
Civil water treatment, Waterworks, Sea water desalination;
Air-conditioning, Fire-fighting facilities, High building water supply;
Oil & Gas & Chemical processing, Abrasive liquids transferring;
Power plant water circulation, Cooling tower & Hot water transferring
Mining, Boiler feeding, etc.
Main Parts Configuration
To meet the demands of multiple applications, which requires that pumps or parts are constructed in a specified material, the Sanchang split case pumps are available in a wide range of materials:
• Cast iron
• Ductile cast iron
• Bronze
• Nickel aluminum bronze
• Stainless steel
• (Super) duplex stainless steel
• Other materials on request
Here followed our recommendation of main configuration:
| Parts Name | Clean Water | Sewage | Hot Water | Corrosive Liquid | Oil Liquid |
| Pump Body | Cast Iron | Ductile Iron | Cast Steel/S.S304 | S.S304/S.S316/S.S2205 | S.S304/S.S316 |
| Shaft | Cast Iron | S.S420 | S.S420/42CrMo | S.S630 | S.S420/40Cr |
| Shaft Sleeve | Carbon Steel | S.S420 | S.S304 | S.S316/S.S630/S.S2205 | S.S304/S.S316 |
| Impeller | Cast Iron | Ductile Iron | Cast Steel/S.S304 | S.S304/S.S316/S.S2205 | S.S304/S.S316 |
| Wearing Ring | Cast Iron | Ductile Iron | Cast Steel/S.S304 | S.S304/S.S316/S.S2205 | S.S304/S.S316 |
| Bearing | China Make/NSK/SKF/Customized |
| Seals | Mechanical Seals/Gland Packing Seals |
We offer a variety of service activities:
• Installation & Commissioning of complete mechanical and electrical installations on turnkey basis.
• Repair & Maintenance - incidental service visits on location to breakdown repairs and maintenance on a 24-hour contract basis for products made by Sanchang or by any other manufacturer.
• Upgrades - with our engineering capabilities we can execute pump modifications to customer specifications of pump designs of most manufactures.
• Original spare parts - we provide stock control of spare parts for groups of pumps (total care maintenance). We are able to respond quickly and flexibly thanks to the availability of our own foundry.
• Inspection on site on an incidental or periodic basis.
• Training of our worldwide customers in the field of installation, operation and maintenance.
• Predictive maintenance helps to keep the lowest energy costs by means of professional vibration measurement and in time repair of possible defects.
